What is SF6 Comprehensive Analyzer Product Overview?

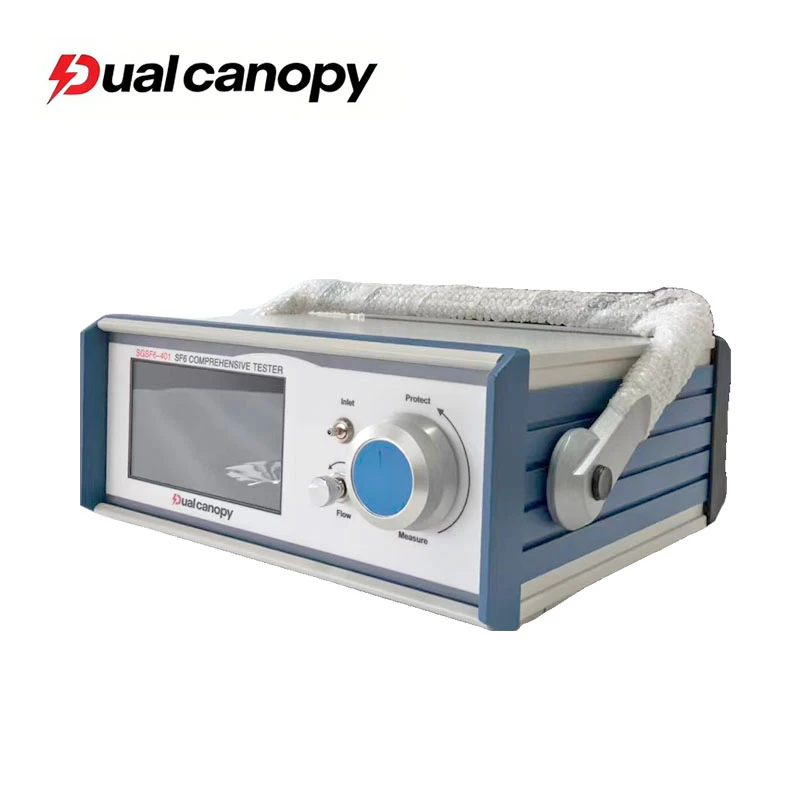

An SF6 comprehensive analyzer is a multi-function field instrument designed to check the quality and condition of sulfur hexafluoride gas inside high-voltage electrical equipment. Instead of carrying separate meters for moisture, purity, and decomposition byproducts, a single unit gives you a complete picture in one test cycle.
It's a 4-in-1 portable gas tester built specifically for power substations.
Instead of carrying a separate dew point meter, a purity meter, and a decomposition analyzer, this one unit does it all in a single 5-minute test. You connect one gas hose, press start, and you get your SF6 moisture, purity, SO2, and H2S readings on one screen.
We built it for field use. It's about 7.5kg, has a built-in battery that lasts a full day, and it automatically saves all your test data with a thermal printer for on-site reports.
If you maintain GIS switchgear or HV circuit breakers, this is the one tool that replaces three.
What Parameters Can this Tester Measure?
1. On-site GIS Substation Testing
Used for testing SF6 gas quality in Gas-Insulated Switchgear (GIS) prior to commissioning, following maintenance, or during routine servicing to verify that gas purity, humidity, and decomposition product levels meet operational standards.
2. SF6 Circuit Breaker Maintenance Testing
Frequent switching operations or fault interruptions in SF6 circuit breakers can generate decomposition products such as SO₂, H₂S, and CO. A comprehensive analyzer allows for the rapid detection of internal issues such as abnormal discharge, overheating, or gas degradation.
3. SF6 Gas Recovery and Reuse Testing
Following the recovery, filtration, and regeneration of SF6 gas, the analyzer verifies whether the gas quality meets the requirements for reuse. IEC 60480 outlines the specifications for the inspection, treatment, and reuse of SF6 gas extracted from electrical equipment.
4. On-site Services for Power Testing Companies
Suitable for third-party power testing firms and power engineering service providers conducting on-site inspections, handover tests, preventive maintenance tests, and fault diagnostics.
5. Factory Acceptance Testing for High-Voltage Equipment
Manufacturers of high-voltage equipment-such as GIS, circuit breakers, and ring main units (RMUs)-can utilize this for gas quality control during production, ensuring stable SF6 gas conditions and data traceability prior to shipment.
Where the SF6 Comprehensive Analyzer Is Used in Power Systems?
1. GIS Substations - Gas-Insulated Switchgear
This is where we get used the most. Technicians use it for routine annual checks and after a fault trip, to test for moisture, purity, and SO2 decomposition products all in one go. A high moisture reading here is usually the first sign of a seal failure.
2. SF6 Circuit Breakers - HV & EHV Breakers
Before refilling a breaker after maintenance, crews will run a full analysis. It takes about 5 minutes to know if your recycled gas is actually good enough to put back in. Saves a ton of new gas costs.
3. SF6 Gas Recovery & Reclamation Centers
For gas recycling plants and utility workshops. It's used to certify reclaimed SF6 to IEC 60480 standards before it goes back into storage cylinders.
Basically, if you're responsible for maintaining GIS, dead-tank breakers, or managing your SF6 gas inventory, this is the one analyzer you'll need in your toolkit.
What are the product's advantages and features?
Integrated multi-parameter testing enhances on-site efficiency.
This device performs measurements of SF6 purity, moisture content, dew point, and decomposition products-all in a single unit-eliminating the need for customers to transport multiple pieces of equipment. For power maintenance personnel and field testing teams, this integrated design reduces testing time and boosts operational efficiency.
SF6 gas quality cannot be assessed based on a single metric alone. Purity reflects the gas's primary quality; moisture content indicates the level of humidity; and decomposition products-such as SO₂, H₂S, and CO-reveal risks of internal discharge or overheating. A comprehensive assessment of multiple parameters is far better suited for on-site operations and maintenance than relying on purity testing alone.
What does after-sales support for end-users entail?
Includes a one-year warranty and lifetime after-sales support.
Provides remote technical guidance;
Includes English manuals and instructional videos;
Supports software upgrades and operational training;
Supplies spare parts, filters, sampling tubes, and connectors;
Provides solutions for quality-related issues during the warranty period.
1. 12-Month Standard Warranty, no fine print. Covers the sensors, pump, and main board. If something fails, we ship a replacement first, you send the faulty unit back after.
2. On-site operation training included. Every unit comes with a 1-on-1 video training session for your team, plus operation videos in English and Chinese.
3. Spare parts in stock for 10 years. Sensors, moisture probes, gas hoses, filters, printer paper. All available from our warehouse.
Which aspects require special attention during use?
1. Avoid prolonged use in environments with high humidity, excessive dust, or strong corrosiveness.
Such environments may affect the sensor's lifespan and measurement stability.
2. Ensure the sampling lines are dry and clean before sampling.
Residual moisture or contaminants in the sampling lines may lead to falsely high readings for trace moisture or decomposition products.
3. Take appropriate protective measures when testing SF6 gas containing high concentrations of decomposition products.
Decomposition products such as SO₂, HF, and H₂S can be corrosive or irritating; the use of protective gloves and safety goggles, along with adequate ventilation, is recommended.
4. Do not vent SF6 gas into the atmosphere indiscriminately.
SF6 has a high global warming potential; it is recommended to use a recovery unit or a low-emission sampling method.
5. Store the instrument in a dry environment when not in use for extended periods.
This prevents moisture from affecting the sensor and ensures stability during future use.
6. Perform periodic calibration.
Regular calibration-based on usage frequency and the customer's quality management requirements-is recommended to ensure the accuracy and traceability of test data.
FAQ
1. What industries commonly use SF6 Comprehensive Analyzers?
The product is widely used in power utilities, high-voltage equipment manufacturers, GIS maintenance companies, electrical testing laboratories, power engineering contractors and SF6 gas recovery service providers.
2. How often should the analyzer be maintained?
The analyzer should be cleaned after use, stored in a dry environment and calibrated periodically. The calibration interval depends on usage frequency and quality management requirements. For frequent field use, annual calibration is generally recommended.
3. Why is SF6 gas testing important?
SF6 gas quality directly affects the insulation and arc-quenching performance of high-voltage equipment. Moisture, air contamination or decomposition products may increase the risk of corrosion, insulation failure and equipment malfunction.
