What is the SGYB-1 Zinc Oxide Lightning Arrester Tester?

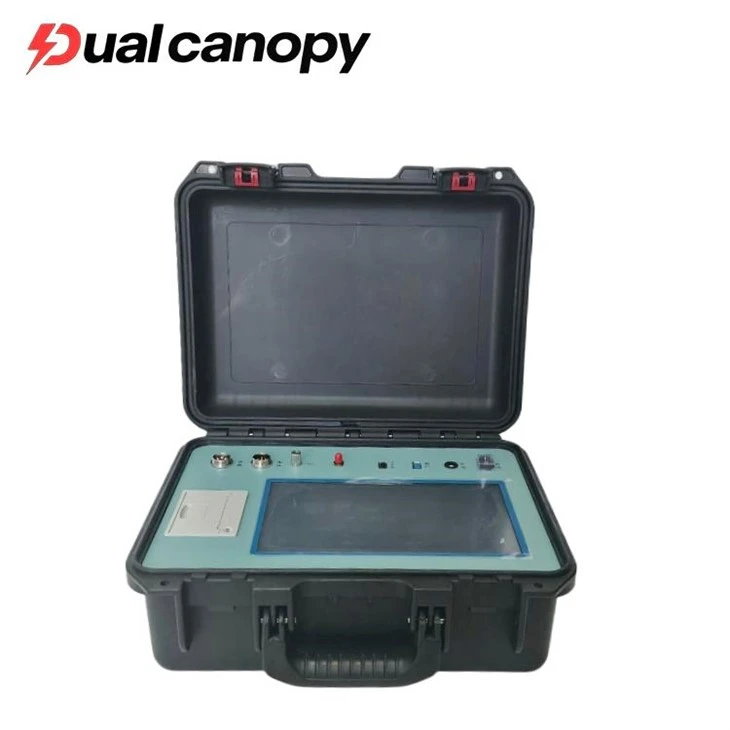

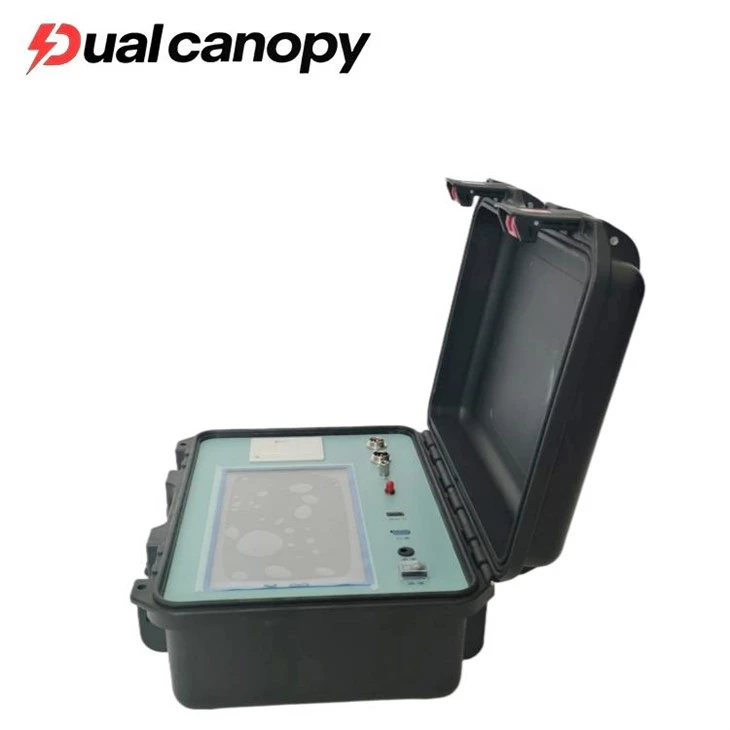

The SGYB-1 Zinc Oxide Lightning Arrester Tester is a specialized electrical testing instrument designed for measuring the electrical parameters of metal oxide arresters (MOAs) in both field and laboratory environments. Built by Hebei Dual Canopy Mechanic Electrical Engineering Co., Ltd., this instrument evaluates the insulation condition and operational reliability of zinc oxide surge arresters under power frequency voltage. It complies with the industry standard DL/T 474.5-92 (Guidelines for the Implementation of Field Insulation Tests - Lightning Arrester Testing) and IEEE C62.11 requirements. The instrument captures total leakage current, resistive current, capacitive current, third and higher-order harmonics, and active power dissipation, providing utility engineers with a comprehensive diagnostic profile of overprotection assets.
What are the Advantages of the SGYB-1 MOA Tester?
High-Precision Harmonic Extraction: Utilizes advanced microcomputer sampling and Fourier harmonic analysis algorithms to separate resistive current from capacitive current accurately, even under high electromagnetic interference.
7-Inch Sunlight-Readable Touchscreen: Features a high-brightness color LCD with full touchscreen capability and a bilingual interface (Chinese and English), ensuring clear visibility in direct outdoor sunlight.
Wireless Android & Bluetooth Control: Connects to Android smartphones or tablets via a dedicated mobile app, enabling operators to control testing remotely and store or share diagnostic reports on the spot.
200-Group Cyclic Data Memory: Houses an internal high-capacity memory module capable of recording up to 200 sets of test data, waveforms, and harmonic analyses with automatic cyclic overwriting.
Integrated High-Speed Thermal Printer: Includes an external micro thermal printer for immediate on-site printing of electrical parameters and verification records.
6-Hour Uninterrupted Battery Life: Powered by a built-in rechargeable high-capacity lithium battery that supports continuous field operation for up to six hours without external AC power.
What are the Main Types of MOA Surge Arrester Testers?
When selecting diagnostic equipment for zinc oxide surge arresters, electrical contractors and utility procurement managers typically categorize testers into three primary types based on functionality and measurement methodology:
Comprehensive Harmonic MOA Testers (like SGYB-1): Advanced instruments that measure full current, fundamental resistive current peaks, harmonics (3rd, 5th, 7th), and active power using reference voltage signals or current-only algorithms.
Handheld Leakage Current Meters: Compact, lightweight screening devices designed for rapid verification of total leakage current without detailed harmonic decomposition.
Online Discharge Counter Testers: Specialized verification tools used to check the operational readiness of surge arrester discharge counters and milliammeters without assessing varistor degradation.
What is the SGYB-1 Lightning Arrester Tester Used For?
The SGYB-1 Lightning Arrester Tester is deployed across various electrical engineering and grid maintenance scenarios:
Routine Preventative Substation Maintenance: Conducting scheduled diagnostic checks on 110kV, 220kV, and 500kV surge arresters to identify early-stage moisture ingress or thermal runaway before failure occurs.
On-Site Live Monitoring (Online Testing): Evaluating metal oxide arresters while high-voltage transmission lines remain energized, avoiding costly power outages.
Laboratory Power-Outage Inspection: Performing detailed baseline calibrations and type tests on newly acquired or decommissioned arresters in high-voltage test bays.
Factory Acceptance Testing (FAT): Serving as a quality assurance instrument for surge arrester manufacturers during production line inspections
Technical Specifications of SGYB-1 Tester
| Technical Parameter | Specification Range & Accuracy | Notes / Operating Conditions |
|---|---|---|
| Total Current (Ix) | 0 – 20 mA | Accuracy: ±5% + 5 µA |
| Resistive Current (Ir) | 0 – 20 mA | Accuracy: ±5% + 5 µA |
| Capacitive Current (Ic) | 0 – 20 mA | Accuracy: ±5% + 5 µA |
| Current Harmonics | 0 – 20 mA | Accuracy: ±10% + 10 µA (3rd, 5th, 7th peaks) |
| Reference Voltage Input | Maximum 250V RMS | Accuracy: ±5% + 0.5V |
| Voltage Harmonics | Maximum 250V RMS | Accuracy: ±10% |
Craftsmanship, Hardware Design & Core Components
The SGYB-1 is built with an industrial-grade ABS/aluminum alloy chassis that resists mechanical vibration, dust, and light moisture in harsh substation environments. Its internal architecture separates high-voltage signal processing from low-voltage microprocessor controls to prevent cross-talk. All voltage test leads are equipped with built-in 100mA protective fuses and anti-misconnection aviation plugs to safeguard the hardware against accidental over-voltage. The instrument features a precision real-time clock chip for reliable time-stamping and a standard USB host interface that allows instant export of test logs to flash drives.
Factory Introduction
Dual Canopy Mechanical Electrical Engineering Co., Ltd. stands as a preeminent high-tech enterprise at the forefront of electrical system automation and precision testing.
Our comprehensive product portfolio encompasses a diverse range of essential electrical equipment. This includes Oil-immersed and Dry-type Transformers, which are designed to meet the varying needs of different applications; the Transformer Oil Test Series, which ensures the quality and reliability of transformer oil; the Transformer Test Series, which provides comprehensive testing solutions for transformers; and the High Voltage Tester Series, which is essential for ensuring safety and performance in high-voltage environments. These products are specifically tailored to serve a broad spectrum of industries, such as power systems, electrified railways, shipbuilding, telecommunications, municipal management, and other large-scale enterprises, where reliability and precision are of utmost importance.
FAQ
Q1: What is the difference between total current and resistive current in MOA testing?
Answer: Total current is the vector sum of capacitive current and resistive current. In a healthy zinc oxide arrester, capacitive current dominates. Resistive current represents the active power loss across the varistor block; an increase in resistive current indicates internal aging, deterioration, or moisture infiltration.
Q2: Can the SGYB-1 test three phases simultaneously?
Answer: Yes. The SGYB-1 supports both single-phase and simultaneous three-phase testing (using Phase A yellow, Phase B green, and Phase C red leads), significantly reducing on-site measurement time.
Q3: How do I export data from the SGYB-1 tester to a computer?
Answer: You can export records by inserting a standard USB flash drive into the front interface and copying the files from the memory management menu, or by syncing data via Bluetooth using the dedicated Android mobile app.
